Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | HJC150 |
| Feed opening | 1300 x 1500 mm |
| Max feed size | 180 - 300 mm |
| CSS Range | 1100 mm |
| Capacity(by hour) | 550 - 950 t/h |
| Motor power | 220 kW |
*Note: The processing capacity of the HJC150 jaw crusher may vary with different materials and feeding sizes.
By selecting reasonable equipment model the production line will greatly improve its capacity. The equipment applied for the production of customers is the most suitable through selection and configuration of professional technician.
Tiancheng Mining and Zhongyu cooperation, the new production of 1500 tons of environmental protection intelligent aggregate production line, production line by Zhongyu design, provide and install a complete set of mining equipment and intelligent management system
The use of Zhongyu Dingli EPCO general contracting, more worry, Zhongyu Dingli has a full set of sand and stone processing equipment, as well as design institute design production line, mapping, civil engineering, installation, operation, after-sales and so on are very professional.

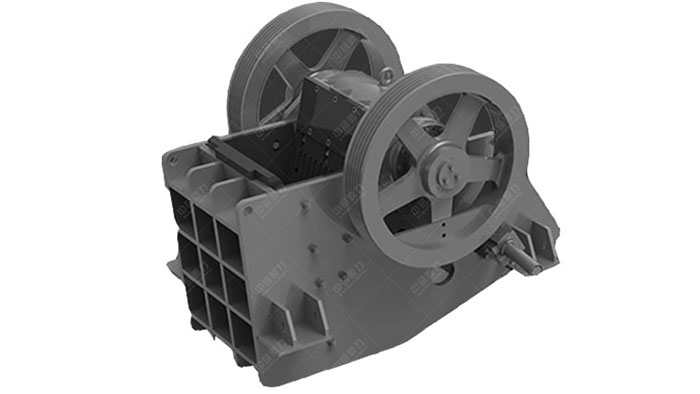

The HJC150 Jaw Crusher is a top-tier model in the HJC Series Jaw Crushers, known for its top performance and exceptional quality. This crusher can handle a maximum feed size of 1100 mm, making it suitable for primary crushing of ultra-large rock and extremely hard ore materials.
The HJC150 Jaw Crusher features an inlet size of 1300 x 1500 mm, capable of accepting a wide range of material inputs, enhancing operational flexibility. The adjustable outlet range of 180 - 300 mm provides users with precise control options to ensure the final product meets specific application requirements.
This crusher has a production capacity of 550 - 950 t/h, suitable for ultra-large-scale operations. Equipped with a 220 kW motor, it ensures efficient power output while considering energy efficiency, achieving both economic and environmental goals.
In terms of design, the HJC150 Jaw Crusher features a heavy-duty moving jaw assembly including high-quality cast steel components, a heavy eccentric shaft, four large self-aligning roller bearings, and a labyrinth seal structure. These components work together to ensure reliable operation under extreme conditions.
Additionally, the vibration damping installation design effectively absorbs peak loads from equipment vibrations, reducing noise pollution and minimizing impact on the foundation, thus extending the equipment's service life.
