Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | HJC65 |
| Feed opening | 450 x 650 mm |
| Max feed size | 380 mm |
| CSS Range | 40 - 100 mm |
| Capacity(by hour) | 30 - 120 t/h |
| Motor power | 45 kW |
*Note: The processing capacity of the HJC65 jaw crusher may vary with different materials and feeding sizes.
The above picture shows the production site of 1000tph aggregates production line of Tongxingyuan Building Material Company. The aligned belt conveyors are transporting aggregates in an orderly manner. The pulse bag filter independently dev
The Southwest China keeps as one of our main markets in China due to its special landscape. Against the backdrop that China tightens national environmental protection policy year by year.
This 500tph stone production line configured by Xinxiang Dingli in Pingliang Gansu mainly adopts PCZ1615 heavy hammer crusher with hourly capacity of 4200-500 ton ZG2038 vibrating feeder and several sets of our efficient vibrating screen.

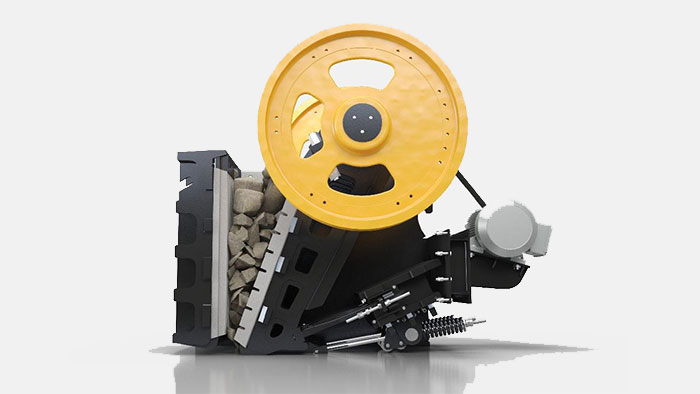

The HJC65 Jaw Crusher is a standout product in the HJC Series Jaw Crushers, renowned for its exceptional performance and reliability. This crusher can handle a maximum feed size of 380 mm, making it suitable for primary crushing of various materials such as rocks and ores. The unique kinematic nip angle cavity design combined with Yongya high-applicability jaw plates not only enhances crushing efficiency but also allows for customization of jaw plate material, shape, and assembly methods to meet diverse production needs.
The HJC65 Jaw Crusher features an inlet size of 450 x 650 mm and an adjustable outlet range of 40 - 100 mm, providing operators with the flexibility to adjust the final product size to meet specific requirements. With a production capacity ranging from 35 to 120 t/h, this crusher is ideal for medium-scale operations. It is equipped with a 45 kW motor, ensuring efficient energy utilization and reduced operating costs.

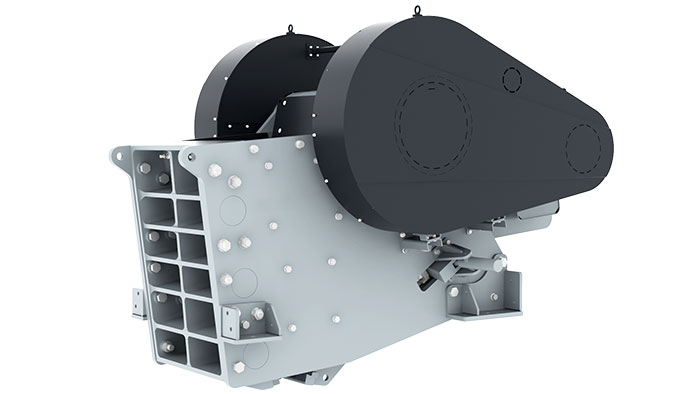

To enhance stability and longevity, the HJC65 Jaw Crusher employs an integral cast steel bearing housing design, which ensures perfect alignment between the bearing housing and the frame, avoiding radial loads on the bearing bracket that are common with traditional split bearing housings. Additionally, the integrated protective transmission unit simplifies installation and allows for adjustable V-belt tension, effectively protecting the transmission components and extending the equipment's service life.
