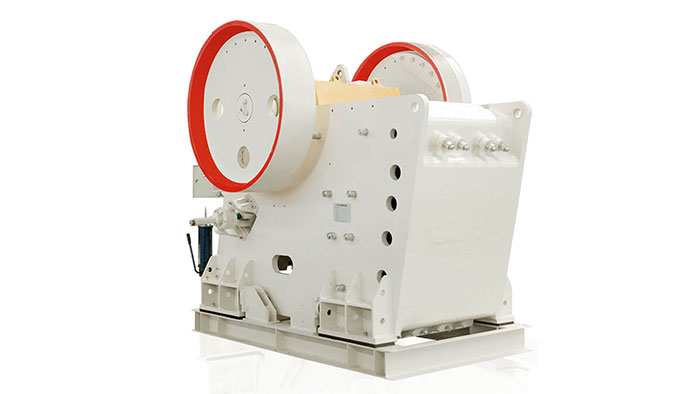

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JC555 |
| Feed opening | 1070×1400 mm |
| Max feed size | 1000 mm |
| CSS Range | 125-250 mm |
| Capacity(by hour) | 320-1150 tph |
| Motor power | 200-220 KW |
*Note: The processing capacity of the JC555 jaw crusher may vary with different materials and feeding sizes.
After being conveyed to the heavy hammer crusher by the vibrating feeder the material successively goes through coarse & fine crushing and screening by gradation.
At present, the highest configuration in the industry, when the output reached 3000 tons, is the highest configuration of the production line in the industry, less power consumption, the production of sand and stone aggregate particle shape, particle size, grading, stone powder content can be adjusted and controlled, the proportion of fine stone accounted for more than 2/3.
The 500t/h stone production line we equipped for Jiangxi Yichang is mainly with PCZ1615 heavy hammer crusher two-level efficient vibrating screens and relative pulse dedusters.
Capacity(by hour)：320-1150 tph
Motor power：200-220 kW
| Crusher throughput capacity,scalped feed material | Crusher throughput capacity,Non-scalped feed material | |
|---|---|---|
| Dischaging Size (mm) | Capacity (t/h) | |
| 125 | 320-450 | 400-560 |
| 150 | 380-535 | 475-570 |
| 175 | 435-600 | 540-750 |
| 200 | 500-690 | 675-930 |
| 225 | 565-775 | 760-1050 |
| 250 | 620-850 | 840-1150 |
