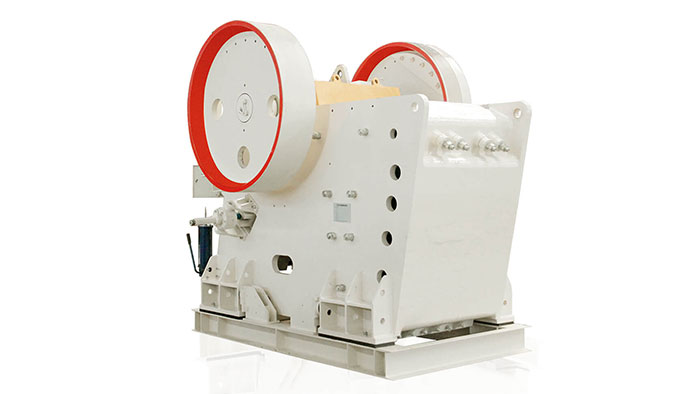

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JC840x1100 |
| Feed opening | 840 x 1045 mm |
| Max feed size | 720 mm |
| CSS Range | 100 - 225 mm |
| Capacity(by hour) | 200 - 500 t/h |
| Motor power | 132 - 160 kW |
| Dimensions | 3300 x 2320 x 3120 mm |
| Weight | 32,000 kg |
*Note: The processing capacity of the JC840x1100 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity
Max. feed size1000 mm
Motor power200 KW
Live Chat
Nominal capacity55 – 135 Mtph
Max. feed size280 mm
Motor power90 KW
Live Chat
Nominal capacity220 - 450 tph
Max. feed size750 mm
Motor power132 KW
Live Chat
With the centralized electrical control the whole gravel aggregates production line can be operated in a centralized manner reducing the trouble to operate every device.
This basic configuration of 500tph production line: PCZ1615 heavy hammer crusher PC1213 hammer crusher ZG1538 feeder 3YKZ2670 vibrating screen*2 2YKZ2670 vibrating screen*2.
EPC general contract construction, production of washed-sand, concrete and other building materials, but also installed the Zhongyu Dingli intelligent mine management system, to achieve more convenient production line management and operation.
Tailored for demanding primary crushing tasks, the JC840x1100 jaw crusher is a high-capacity machine suited for industries requiring robust processing solutions. It is designed to handle materials with compressive strengths not exceeding 280 MPa, making it a valuable asset in metallurgy, mining, chemical engineering, cement production, construction, refractory materials, and ceramics. This model accepts feed sizes up to 720 mm and produces capacities from 200 to 500 tonnes per hour.
Key Specifications
The design of the JC840x1100 incorporates a sturdy frame with side plates and front/rear box components, supporting a powerful eccentric shaft that drives the moving jaw. The crushing chamber, where the fixed and moving jaw plates interact, is where the magic happens. The discharge opening can be adjusted to suit varying processing needs, ensuring that the JC840x1100 remains a versatile tool for industrial applications.
