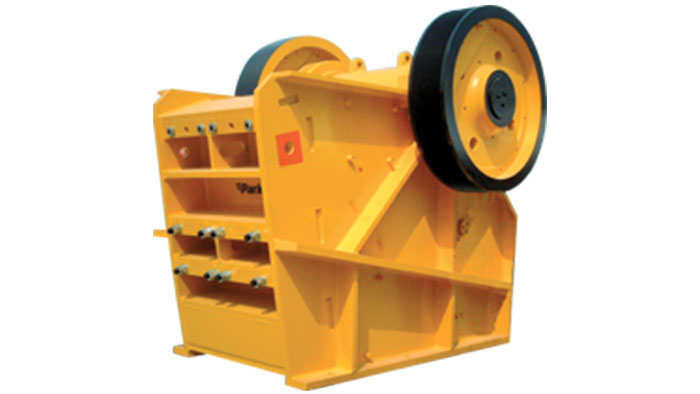

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | MC1100 |
| Feed opening | 1100 x 850 mm |
| Max feed size | 1000 mm |
| CSS Range | 70 - 200 mm |
| Capacity(by hour) | 170 - 595 tph |
| Motor power | 160 kW |
| Dimensions | 3770 x 2385 x 2750 mm |
| Weight | 25,800 kg |
| Rotation speed of eccentric shaft | 230 rpm |
*Note: The processing capacity of the MC1100 jaw crusher may vary with different materials and feeding sizes.
Machine: ZG1238 vibrating feeder + PCZ1512 heavy hammer crusher + 3YKQ2470 vibrating screen + 2YKQ2470 vibrating screen
The above picture shows the production site of 1000tph aggregates production line of Tongxingyuan Building Material Company. The aligned belt conveyors are transporting aggregates in an orderly manner. The pulse bag filter independently dev
Investment advantage: the single-line arrangement of crushing process facilitates the transportation. The combined screening of multi vibrating screens makes the material much cleaner.
| Closed side setting (mm) | Capacity (t/h) |
|---|---|
| 70 | 170-230 |
| 80 | 185-265 |
| 90 | 215-285 |
| 100 | 235-305 |
| 125 | 285-375 |
| 150 | 335-455 |
| 175 | 375-530 |
| 200 | 455-595 |
