Product data

modelMC1200
Feed opening1200 x 870 mm
Max feed size870 mm
CSS Range70 - 200 mm
Capacity(by hour)175 - 545 tph
Motor power160 kW
Weight25,800 kg
Rotation speed of eccentric shaft220 rpm

*Note: The processing capacity of the MC1200 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

1200 x 225 jaw crusher

1200 x 225 jaw crusher1200 x 225

Nominal capacity

Max. feed size175mm（7″）

Motor power

Live Chat
1200 x 300 jaw crusher

1200 x 300 jaw crusher1200 x 300

Nominal capacity55 – 135 Mtph

Max. feed size280 mm

Motor power90 KW

Live Chat

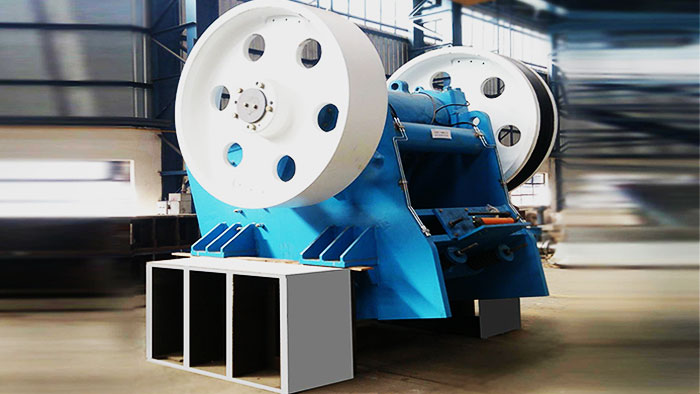

1200 x 900 jaw crusher

1200 x 900 jaw crusher1200 x 900

Nominal capacity192 – 307 Mtph

Max. feed size

Motor power

Live Chat

Case stories

1500TPH Stone Production Line in Guangxi

As seen at the production site, raw stones are conveyed to different silos from row-up belt conveyors within a short time.

1000TPH Stone Production Line in Yibin

In production base we find there are some relative technicians install dust cover to reduce the spillage of dust.

300TPH Sand Making Production Line in Hunan

It is seen this production line adopts centralized construction by using the dry sand making equipment of Zhongyu Dingli. In the sign board on the production site it clearly indicates the components of the equipment and operation process.

Additional product information

MC1200 Jaw Crusher: Modular Construction for High-Efficiency Crushing

Technical Specifications

  • Feed Opening Width: 1200 mm
  • Feed Opening Depth: 870 mm
  • Power: 160 kW
  • Speed: 220 rpm
  • Weight: 26,200 kg
  • Capacity: 170-545 t/h
  • Product Size: Up to 775 mm (adjustable)

Key Features

  • Modular, Non-Welded Frame: High fatigue resistance and flexible installation possibilities.
  • Precisely Balanced: Easy and cost-effective setup.
  • Special Cast Steel Components: Durable and low-cost operation.
  • Large Bearings: Four bearings of the same size for enhanced durability.
  • Cast Steel Moving Jaws and Front/Back Walls: Strong and long-lasting structure.
  • Double Wedge Adjustment System: Easy and safe discharge opening adjustment.
  • Automated Lubrication: Ensures smooth operation.

Applications

  • Stone Crushing
  • Mining Operations
  • Recycling Concrete and Asphalt
  • Industrial Waste Processing

Performance Highlights

  • Optimal Crushing Chamber Design: Large stroke and high power for efficient crushing.
  • Customizable Toothed Plates and Side Liners: Suitable for various applications.
  • Controlled Feed Rate: Ensures uniform output and maximizes capacity.
