Product data

modelMC1600
Feed opening1600 x 1200 mm
CSS Range150 - 300 mm
Capacity(by hour)430 - 1150 tph
Motor power250 kW
Weight76,500 kg
Rotation speed of eccentric shaft220 rpm

*Note: The processing capacity of the MC1600 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

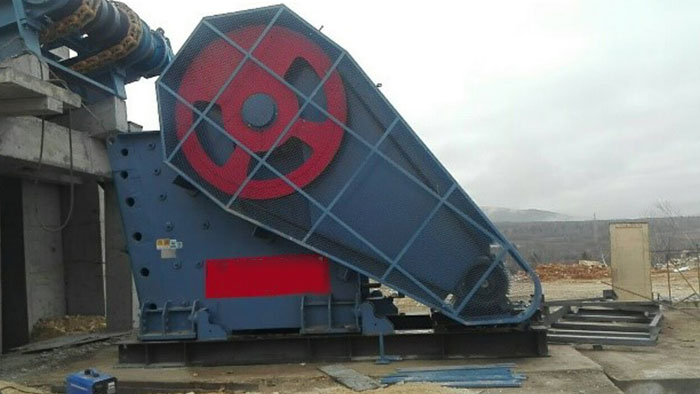

MC1250 jaw crusher

MC1250 jaw crusherMC1250

Nominal capacity240 - 750 tph

Max. feed size950 mm

Motor power160 kW

Live Chat
MC1000 jaw crusher

MC1000 jaw crusherMC1000

Nominal capacity120- 485 tph

Max. feed size

Motor power110 kW

Live Chat
MC1080 jaw crusher

MC1080 jaw crusherMC1080

Nominal capacity165 - 795 tph

Max. feed size830 mm

Motor power132 kW

Live Chat

Case stories

700TPH Fluorite Production Line in Jiujiang

This production line is built with a fluorite ore as backing. As primary source of industrial fluorite element the crushed fluorite stone can be widely applied in medical anti-corrosion and mechanical fields. In order to reduce the powder

600TPH Stone Production Line in Liuzhou Guangxi

It is seen the stone production line is next to concrete production base which greatly facilitates production. Many concrete manufacturers consider constructing their own stone production lines.

600TPH Stone Production Line in Pingdingshan

Seen from the pics the whole stone crushing line adopts fully-closed mode. Compared with previously open-pit operation it is more eco-friendly. The feed silo production process and discharge silo are also enclosed by the closing plate to

Additional product information

MC1600 Jaw Crusher: Modular Frame for Ultra-High Capacity Crushing

Technical Specifications

  • Feed Opening Width: 1600 mm
  • Feed Opening Depth: 1200 mm
  • Power: 250 kW
  • Speed: 220 rpm
  • Weight: 76,500 kg
  • Capacity: 435-1150 t/h
  • Product Size: Up to 1270 mm (adjustable)

Key Features

  • Modular, Non-Welded Frame: High fatigue resistance and flexible installation possibilities.
  • Precisely Balanced: Easy and cost-effective setup.
  • Special Cast Steel Components: Durable and low-cost operation.
  • Large Bearings: Four bearings of the same size for enhanced durability.
  • Cast Steel Moving Jaws and Front/Back Walls: Strong and long-lasting structure.
  • Double Wedge Adjustment System: Easy and safe discharge opening adjustment.
  • Automated Lubrication: Ensures smooth operation.

Applications

  • Stone Crushing
  • Mining Operations
  • Recycling Concrete and Asphalt
  • Industrial Waste Processing

Performance Highlights

  • Optimal Crushing Chamber Design: Large stroke and high power for efficient crushing.
  • Customizable Toothed Plates and Side Liners: Suitable for various applications.
  • Controlled Feed Rate: Ensures uniform output and maximizes capacity.
