Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | PE1000 x 1200 |
| Feed opening | 1000 x 1200 mm |
| Max feed size | 850 mm |
| CSS Range | 195 - 265 mm |
| Capacity(by hour) | 315 - 500 tph |
| Motor power | 110 KW |
| Dimensions | 3480 x 2876 x 3330 mm |
| Weight | 55 t |
| Rotation speed of eccentric shaft | 200 r/min |
*Note: The processing capacity of the PE1000 x 1200 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity190 - 336 tph
Max. feed size 660 mm
Motor power110 KW
Live Chat
Nominal capacity110 - 320 tph
Max. feed size630 mm
Motor power110 KW
Live Chat
Nominal capacity230 - 390 tph
Max. feed size685 mm
Motor power110 KW
Live Chat
On the basis of local materials of limestone our technicians elaborately inspected the field for the best place and built this Sichuan production line with convenient resource places production and transportations.
Relying on local river pebble resource the customer invests such a 300tph stone crushing line. Our KPC1313 hard rock crusher adopts the rotor with two rows of hammers so it can fully crush the materials. Hydraulic cylinder pulls the the s
In this aggregates production plant we get to know it builds near mountain for rich local natural resource low transportation energy costs and high productivity.

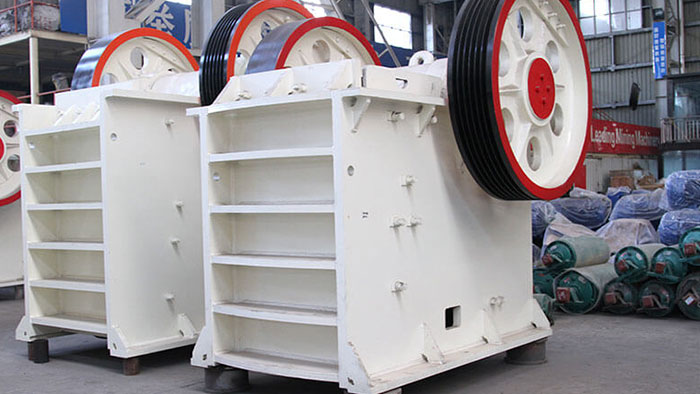

Structure:The PE 1000×1200 jaw crusher features a robust frame constructed from high-quality steel, ensuring stability and durability during long-term operation. The design includes a fixed jaw plate, a movable jaw plate, a heavy-duty flywheel, and a toggle plate. The flywheel helps reduce vibrations and noise during operation.
Technical Parameters:
Model: PE 1000×1200
Feed Opening Size (mm): 1000×1200
Maximum Feed Size (mm): 850
Discharge Opening Adjustment Range (mm): 195-265
Capacity (t/h): 315-500
Eccentric Shaft Speed (r/min): 200
Motor Power (kw): 8P 110
Dimensions (L×W×H) (mm): 3480×2876×3330
Total Weight (t): 55
| Closed side setting (mm) | Capacity (t/h) |
|---|---|
| 195 | 378 |
| 200 | 389 |
| 205 | 400 |
| 210 | 411 |
| 215 | 422 |
| 220 | 433 |
| 225 | 445 |
| 230 | 456 |
| 235 | 467 |
| 240 | 478 |
| 245 | 489 |
| 250 | 500 |
| 255 | 511 |
| 260 | 523 |
| 265 | 533 |
