Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | ZB600 x 900 |
| Feed opening | 600 x 900 mm |
| Max feed size | 480 mm |
| CSS Range | 65 - 160 mm |
| Capacity(by hour) | 90 - 180 tph |
| Motor power | 90 KW |
| Dimensions | 2290 x 2206 x 2370 mm |
| Weight | 17,000 kg |
*Note: The processing capacity of the ZB600 x 900 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity90 - 180 tph
Max. feed size480 mm
Motor power90 KW
Live Chat
Nominal capacity220 - 450 tph
Max. feed size750 mm
Motor power132 KW
Live Chat
Nominal capacity
Max. feed size630 mm
Motor power110 KW
Live Chat
Equipment configuration: PCZ1615 heavy hammer crusher ZG1538 vibrating feeder 3YKZ1670 vibrating screen. Performance feature: as one of the major market of Xinxiang Dingli Jiangxi spreads over our customers production sites.
The Southwest China keeps as one of our main markets in China due to its special landscape. Against the backdrop that China tightens national environmental protection policy year by year.
In this production line we get to know that the bulk material should be firstly crushed by crusher for large size finished material and then it is crushed into smaller ones for little stones.

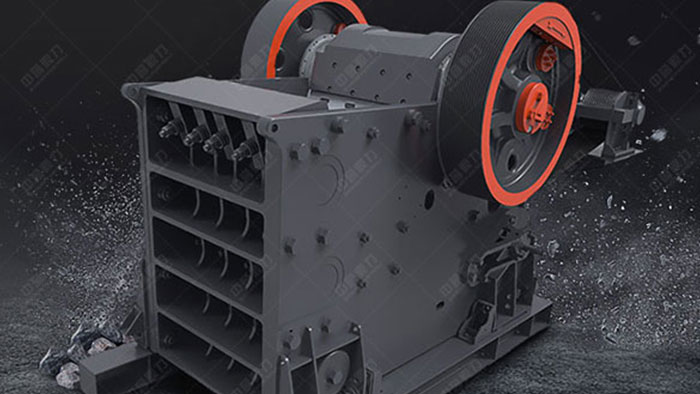

The ZB600 x 900 jaw crusher is engineered for robustness and dependability in heavy-duty applications. It comes with a generous inlet size of 600 x 900 mm, capable of handling material sizes up to 480 mm. The adjustable discharge gap ranges from 65 to 160 mm, enabling a flexible output size. This model boasts a processing capacity of 90 to 180 tons per hour, making it a powerful choice for mid-sized operations. The motor power ranges from 90 kW, and the unit itself weighs around 17 tonnes. Measuring 2290 x 2206 x 2370 mm, the ZB600 x 900 is built to endure rigorous use while maintaining ease of operation and accessibility for maintenance.
Featuring advanced technology such as direct-drive motors and balanced flywheels, the ZB600 x 900 ensures a smooth and stable operation. The machine is designed to minimize vibration and noise levels, contributing to a safer working environment and reduced environmental impact.
