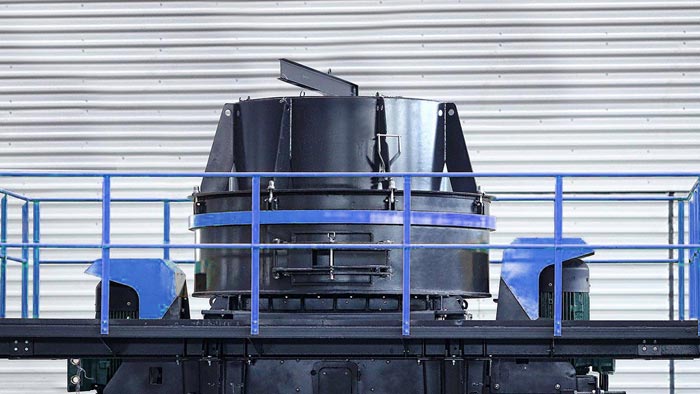

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderVertical Shaft Impact Crusher
Enclosed rotor and rock shelf (ROR)——ROCK ON ROCK
| Model | MVI70G(ROS SD) | MVI70G(ROS DD) | ||
| Drive | Single Drive | Dual Drive | ||
| Maximum Feed Size | 35 mm | 1³/8 inch | 35mm | 1³/8 inch |
| Capacity | 120 mtph | 130 stph | 160 mtph | 175 stph |
| Power | 110-160 kW | 150-220 HP | 2×110 kW | 2×150 kW |
| Speed | 1500-2100 rpm | |||
| Weight | 4900 kg | 10800 lbs | 5550 kg | 12236 lbs |
Enclosed rotor and anvil ring (ROS)——ROCK ON STEEL
| Mode l | MVI70G(ROS SD) | MVI70G(ROS DD) | ||
| Drive | Single Drive | Dual Drive | ||
| Maximum Feed Size | 35 mm | 1³/8 inch | 35 mm | 1³/8 inch |
| Capacity | 120 mtph | 130 stph | 160 mtph | 175 stph |
| Power | 110-160 kW | 2×150-220 HP | 2×110 kW | 2×220 kW |
| Speed | 1500-2100 rpm | |||
| Weight | 6300 kg | 13889 lbs | 6950 kg | 15322 lbs |
*Note: The processing capacity of the MVI70G cone crusher may vary with different materials and feeding sizes.
