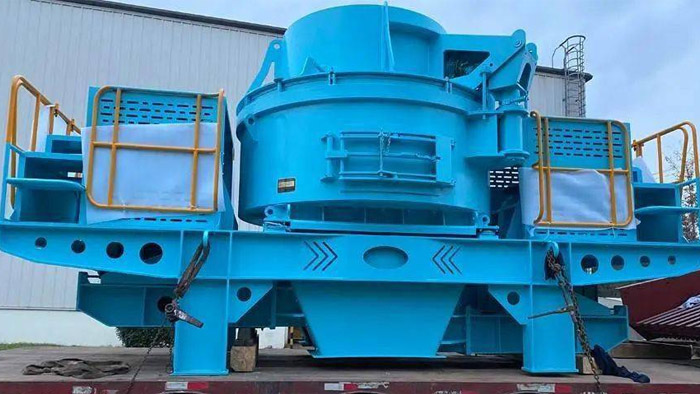

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderImpact sand maker
| Model | VC743L | VC743M | VC743H |
| Rotation Speed of Impeller (r/min) | 1132-1504 | ||
| Max Feed Size (mm) | 60 | ||
| Throughput (t/h) (Full feeding center / center plus waterfall feeding) | 230-346 | 246-373 | 281-405 |
| 309-577 | 335-630 | 366-683 | |
| Motor Power (kw) | 400 | 440 | 500 |
| Overall Dimensions (mm) | 5850x2740x3031 | ||
| Weight(motor not included) (kg) | ≤21040 | ||
*Note: The processing capacity of the VC743 cone crusher may vary with different materials and feeding sizes.
