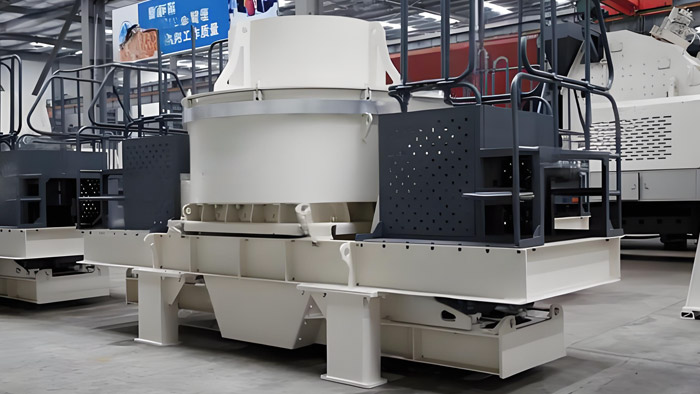

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderImpact sand maker
| Model | VCU743L | VCU743M | VCU743H |
| Rotation Speed of Impeller (r/min) | 1132-1504 | ||
| Max Feed Size (mm) | 100 | ||
| Throughput (t/h) (Full feeding center / center plus waterfall feeding) | 305-467 | 335-506 | 375-540 |
| 362-678 | 379-746 | 439-800 | |
| Motor Power (kw) | 400 | 440 | 500 |
| Overall Dimensions (mm) | 5850x2740x3031 | ||
| Weight(motor not included) (kg) | ≤21240 | ||
*Note: The processing capacity of the VCU743 cone crusher may vary with different materials and feeding sizes.
