Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderThe Zhongyu Dingli DLKPC dual chamber hard rock crusher can be used to solve the problems of large equipment wear and poor material particle size during the process of crushing hard rocks. It can be used for medium and fine crushing of crushing projects,
The dual chamber hard rock crusher is a mining crushing equipment developed by Zhongyu Dingli, which is used to solve the problems of large equipment wear and poor particle shape of crushed materials during the process of crushing hard rock for customers. This equipment is based on the company's years of research and development of hammer crushers, combined with the actual situation of crushing production lines, and is more suitable for crushing and processing hard materials such as granite, pebbles, and river pebbles.

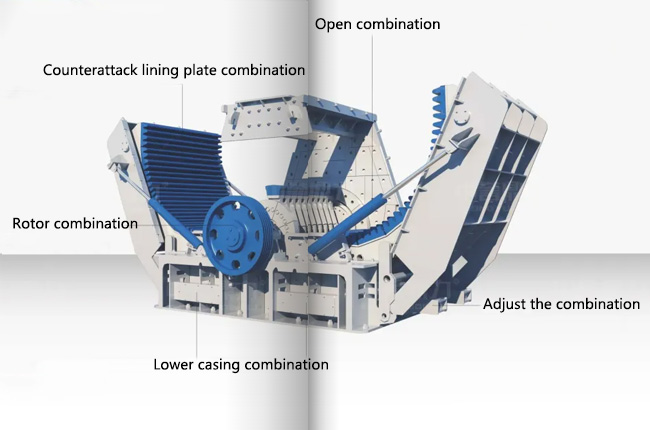

The Zhongyu Dingli DLKPC dual chamber hard rock crusher is mainly composed of components such as counterattack lining plate combination, rotor combination, opening combination, adjustment combination, and lower casing combination.

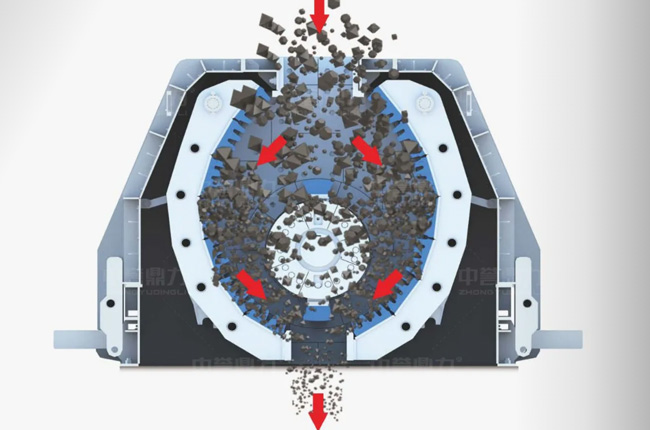

When the equipment is working, the motor drives the hammer head to run at high speed, creating an impact force on the material falling from above. At this time, the material gains kinetic energy and collides with the counterattack plate on the inner wall of the machine cavity at high speed, causing secondary crushing of the material. From the time the material enters the machine cavity, it collides with each other to form self crushing. The material reaches the required particle size through multiple impacts and grinding, and is discharged from the discharge port below the machine cavity to complete the crushing process.
Dual Chamber Design
Improving Lifespan
Two Way Hammer Head
Easy To Use
Environmentally Friendly Production
Easy Maintenance
Double Roll CrusherCapacity:450-1000t/h
Heavy Hammer CrusherCapacity: 50-4500T/H
Jaw CrusherCapacity: 5-1100t/h
Single Cylinder Hydraulic Cone CrusherCapacity: 20-1500t/h
| Model | Rotor Diameter×Length(mm) | Feed Opening Width×Length(mm) | Feed Size(mm) | Power(kw) | Capacity(t/h) | Machine Size Length×Width×Height(mm) |
|---|---|---|---|---|---|---|
| DLKPC-1210 | 1180×987 | 600×1040 | ≤180 | (110KW-4)×2 | 150-200 | 4535×2484×4265 |
| DLKPC-1313 | 1320×1280 | 600×1400 | ≤180 | (200KW-4)×2 | 250-350 | 4535×2972×4265 |
| DLKPC-1316 | 1320×1580 | 600×1700 | ≤180 | (250KW-4)×2 | 300-450 | 4535×3280×4265 |
Note: specifications are subject to change without notice. Please refer to the actual data of machine.
