Integrated Machine For Fine Sand Recovery And Dewatering

The integrated machine for fine sand recovery and dewatering, also known as fine sand dewatering equipment or sand washing and recovery equipment, can be used in the fine sand recovery stage of sand production projects. The single processing capacity of Z

Application:Mechanized sand production line, commercial mixing station, etc

Feeding Size:≤5mm

Capacity:70-300t/h

If you are interested in our products, please contact usWhatsapp:+8618336065555Email:dingli@dinglicrusher.com

I. Description

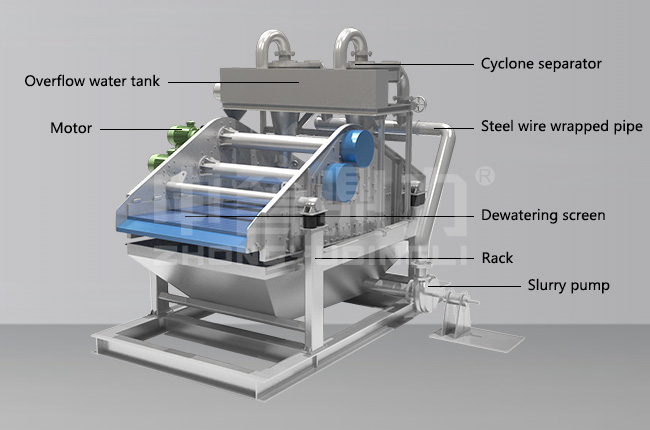

The Zhongyu Dingli DLXSH integrated machine for fine sand recovery and dewatering consists of a fine sand recovery system, slurry pump, dewatering screen, frame, etc. Its main function is to clean, dehydrate, and grade materials, effectively reducing the loss of fine sand and solving the problem of high sand fineness modulus and low stone powder content in artificial aggregate processing systems.

III. Operation Principle

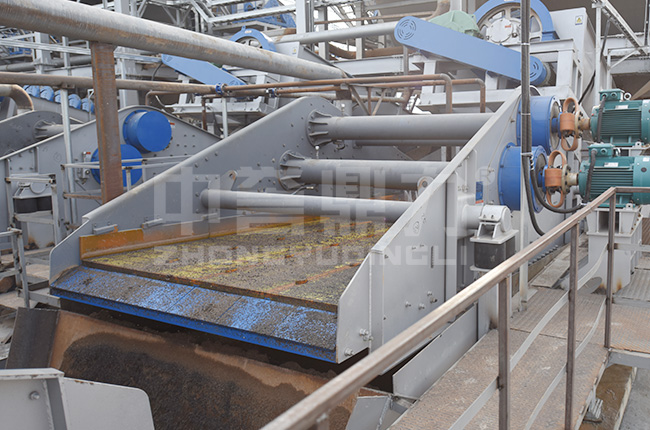

When the Zhongyu Dingli DLXSH integrated machine for fine sand recovery and dewatering is in operation, the slurry pump transports the screened water mixture to the cyclone, and the fine sand concentrated by centrifugal classification is provided to the dewatering screen through the sand settling nozzle. After dehydration screening, fine sand and water are effectively separated, and a small amount of fine sand, mud, etc. flow into the sewage treatment system through the overflow tank. The weight concentration of the recovered material through dehydration screening is 70% -85%. Adjusting the fineness modulus can be achieved by changing the pump speed, changing the mortar concentration, adjusting the overflow water volume, and replacing the sand nozzle, thereby completing three functions: cleaning, dehydration, and grading.

Features

Low Loss Rate Of Fine Sand: In traditional wet sand production lines, spiral sand washing machines are often used, resulting in a high loss rate of fine sand. The integrated machine for fine sand recovery and dewatering can greatly reduce the loss of fine sand, controlling it between 5% and 10%.

Large Recycling Volume: The cyclone can smoothly complete the work of slurry concentration and liquid clarification. The fine sand recovery system can recover up to 85% of the fine particulate materials in the total emissions, providing unparalleled technological and economic advantages compared to other equipment.

Multi-Purpose Machine: Zhongyu Dingli Fine Sand Recycling and Dehydration Integrated Machine integrates functions such as fine sand screening, dewatering, desliming, and recovery, making it versatile; It has a significant effect on solving the problem of fine sand loss in the production of mechanism sand.

High Economic Benefits: Compared to traditional sand washing machines, the finished materials are cleaner, which is beneficial for increasing the price of finished products and improving economic benefits; Fine sand from the mechanism sand production line can be directly recycled for sale, shortening storage time and achieving quick cost recovery.

Low Failure Rate: The sieve mesh of the dehydration screen is made of polyurethane material, which has good elasticity and a long service life, and is not easily clogged during screening; The device has a simple structure, is easy to operate, runs smoothly, has a low failure rate, and has low maintenance costs.

Low Investment Cost: The structural design of the equipment is reasonable, occupies a small area, is easy to install and maintain, and has low investment costs; The high recovery rate of fine sand greatly reduces the workload of the sedimentation tank and reduces the cost of cleaning the sedimentation tank.

Technical Data of Integrated Machine For Fine Sand Recovery And Dewatering

Model	Feed Size(mm)	Installation Angle(°)	Slurry Pump Model	Cyclone Model	Power(kw)	Capacity(t/h)	Machine Size Length×Width×Height(mm)
DLXSH1845	≤5	-3	6/4D-AH	2×FX350	3.7	70-120	4850×2650×3650
DLXSH2245	≤5	-3	6/4D-AH	4×FX350	11	90-190	4850×3680×3900
DLXSH2448	≤5	-3	8/6D-AH	2×FX500	22	100-210	5300×4190×4750
DLXSH2460	≤5	-3	8/6D-AH	2×FX500	22	100-220	6500×4190×4700
DLXSH3060	≤5	-3	/	/	37	200-300	6250×4730×3600

Note: specifications are subject to change without notice. Please refer to the actual data of machine.
