Roller Screen

Application:mud and rock mixture, construction waste, slag, soil and rock mixture, etc

Feeding Size:≤800mm

Capacity:500-1900t/h

If you are interested in our products, please contact usWhatsapp:+8618336065555Email:dingli@dinglicrusher.com

I. Description

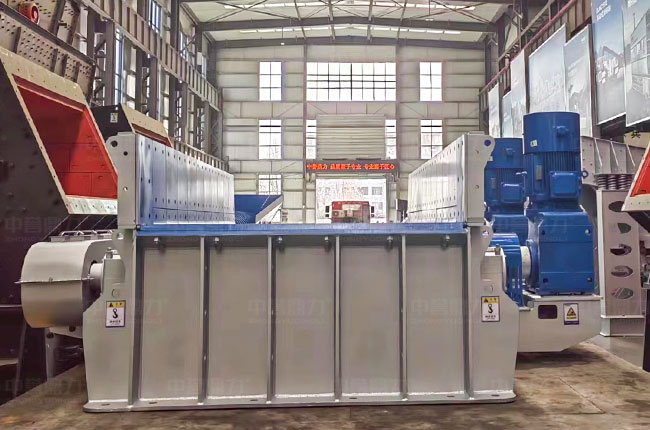

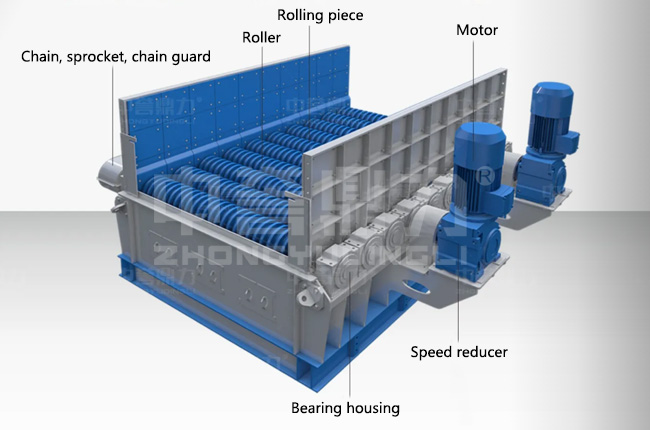

The Zhongyu Dingli DLGS roller screen is driven by dual motors and has two active shafts. The screen is made of corrosion-resistant, high and low temperature resistant, non-magnetic, and high-strength alloy steel; There are lining plates on both sides of the screen body to prevent material from contacting the box and extend the service life of the box; Configure a variable frequency motor to flexibly adjust the transport speed.

III. Operation Principle

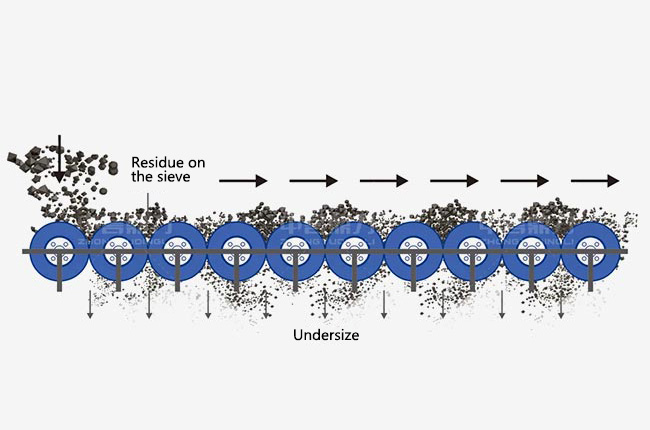

After startup, the sprocket drives the roller shaft to rotate via the chain, with the rotation direction of the roller shaft aligned with the material flow. Soil falls through the gaps between adjacent roller shafts and discs onto the belt conveyor at the bottom of the machine for discharge, while large materials above the roller shafts move to the end of the equipment before being discharged, completing the separation of soil and stones. The gaps between shafts can be customized based on actual requirements.

Features

Multi Purpose Machine: This roller screen equipment not only efficiently separates soil and stone mixtures but also serves as a feeder, combining multiple functions into one machine to save equipment investment.

Anti Clogging Design: Each roller is equipped with a cleaning device to keep the roller clean and not easy to block. The material has strong applicability, high moisture resistance, and can screen viscous materials.

Flexible Operation: Depending on the actual layout requirements of the production line, the equipment can be installed horizontally or at an incline. It features a simple structure, stable operation, and low noise.

Easy Maintenance: Each roller shaft operates independently without affecting one another, Independent maintenance does not affect production;Inspection openings are provided on the upper and rear sides of the machine body for convenient inspection and repair.

Eco Friendly Sealing: The roller shafts and box body are sealed with impeller-type seals, enabling rapid water-free separation of soil and stone mixtures. This effectively suppresses dust dispersion, environmentally friendly production.

Customizable Shaft Gaps: The gaps between the roller shafts can be customized according to actual needs. The screen discs are made of durable alloy steel, ensuring robustness and long service life.

Technical Data of Roller Screen

Model	Slot Width(mm)	Slot Length(mm)	screening area(㎡)	Feed Size(mm)	Capacity(t/h)	Power(kw)
DLGS1510	1500	3600	5.4	≤800	400-600	30×2
DLGS1810	1800	3600	6.48	≤800	500-900	37×2
DLGS2410	2400	3600	8.64	≤1000	1000-1500	45×2
DLGS2610	2600	3600	9.36	≤1000	1500-2000	55×2
DLGS3010	3000	3600	10.8	≤1000	2100-3000	55×2

Note: specifications are subject to change without notice. Please refer to the actual data of machine.
