| Parameter Category | Specification Value | ||
|---|---|---|---|
| model | DLDH430 | ||
| Cavity type | H1 | H2 | H3 |
| Feeding port size (mm) | 200 | 115 | 35 |
| Max feed size (mm) | 160 | 90 | 25 |
| Minimum discharge port size (mm) | 13 | 10 | 6 |
| Capacity (tph) | 69 - 215 | 57 - 184 | 70 - 90 |
| Power (kw) | 160 | ||

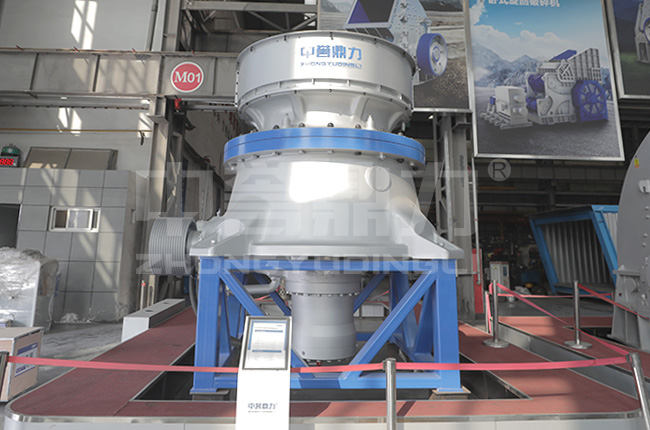

The DLDH430 single cylinder hydraulic cone crusher has three types of crushing chambers: H1, H2, and H3. There are two types of crushing chambers that meet the production capacity specification of 100 tons per hour: H1 fine chamber and H2 medium fine chamber.
The feed size of H1 fine cavity cone breaker should be less than 160 millimeters, and the discharge particle size should be less than 13 millimeters. The hourly production capacity is 69-215 tons.
The feed size of the H2 fine cavity cone breaker should be less than 90 millimeters, and the discharge particle size should be less than 10 millimeters. The hourly production capacity is 57-184 tons.
This equipment adopts classic laminated crushing and has an integrated design of hydraulic station lubrication station. Its volume is relatively small, saving installation space. Suitable cavity types can be selected based on their input and output requirements.
Free consultation on related issues.
