Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | HV12 |
| Feed opening | 1200 x 1500 mm |
| CSS Range | 150 - 225 mm |
| Capacity(by hour) | 450 - 600 tph |
| Motor power | 160 - 200 kW |
*Note: The processing capacity of the HV12 jaw crusher may vary with different materials and feeding sizes.
This production line of 1100 tons of sand and aggregate can achieve unified production management, unmanned shovel loading, unmanned inspection, unmanned dust collection, and the use of one-click start-stop operations.
In the production site the material shape can be effectively controlled by each process that has better shape than natural sand. It has a bright future with meeting the demand of sand size gradation and crushing index.
Equipment configuration: PCZ1512 heavy hammer crusher ZGC1238 vibrating screen*2 ZSJ1215 dual rotor sand making machine.

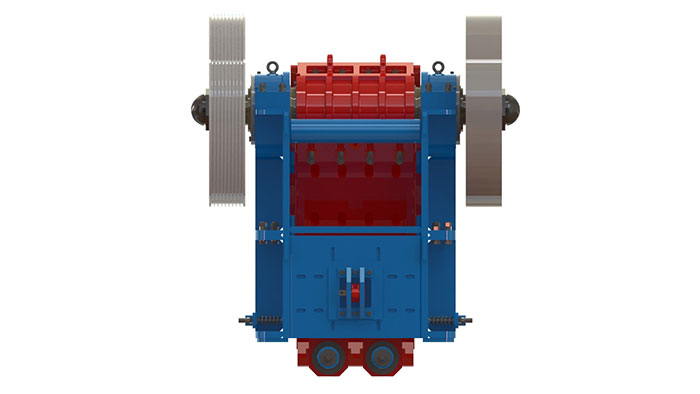

HV12 Hydraulic Jaw Crusher: Advanced Crushing Technology
The HV12 Hydraulic Jaw Crusher is equipped with advanced crushing technology and wide applicability, making it an essential tool in sand quarries, stone quarries, coal mines, cement plants, slag processing, and chemical industries. This machine has an inlet size of 1200 x 1500 mm and a minimum discharge setting of 150 mm. The HV12 Hydraulic Jaw Crusher is powered by a motor ranging from 160 - 200 kW, capable of processing between 450 and 880 tons per hour. The HV12 Hydraulic Jaw Crusher is suitable for handling various ores and large-sized materials with compressive strength below 320MPa, making it an ideal choice for large-scale crushing applications.
The HV12 Hydraulic Jaw Crusher employs a specialized adjustment mechanism, making the discharge setting adjustment more convenient. The equipment is fitted with an advanced hydraulic system that automatically adjusts the discharge opening when encountering unbreakable materials, protecting the jaw plates and preventing feed opening blockage. The HV12 Hydraulic Jaw Crusher’s design not only increases the application range of the equipment but also simplifies user operations.
