Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | HV15 |
| Feed opening | 1500 x 1800 mm |
| CSS Range | 225 - 300 mm |
| Capacity(by hour) | 1150 - 1500 tph |
| Motor power | 355 kW |
*Note: The processing capacity of the HV15 jaw crusher may vary with different materials and feeding sizes.
It is seen this production line adopts centralized construction by using the dry sand making equipment of Zhongyu Dingli. In the sign board on the production site it clearly indicates the components of the equipment and operation process.
Its seen from the pics that with large feed opening the hammer crusher can hold a large quantity of material for once. The protective device can prevent the materials from spillover which improves the capacity of entire production line.
This 1,000 tons of aggregate production line was put into operation in September 2018, using DLPCZ1820 heavy hammer crusher, DLPC1220 plastic hammer crusher, DL3YKZ3070 vibrating screen and other sets of mine production equipment, the introduction of a complete set of mine intelligent management system.

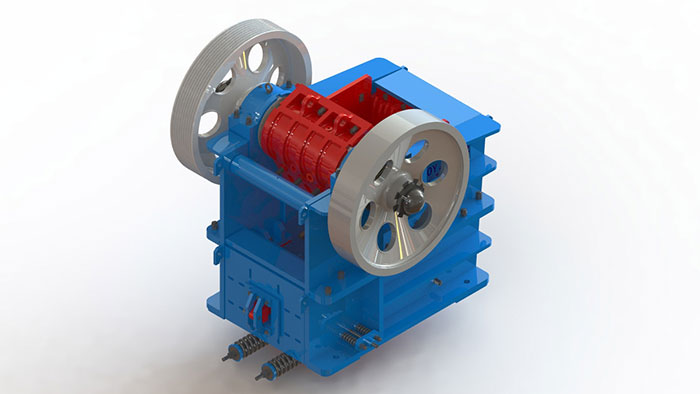

HV15 Hydraulic Jaw Crusher: High-Performance Crushing Equipment
The HV15 Hydraulic Jaw Crusher is a high-performance and high-capacity device that is critical in sand quarries, stone quarries, coal mines, cement plants, slag processing, and chemical industries. This machine has an inlet size of 1500 x 1800 mm and a minimum discharge setting of 250 mm. The HV15 Hydraulic Jaw Crusher is powered by a motor of 355 kW, capable of processing between 1150 and 1500 tons per hour. The HV15 Hydraulic Jaw Crusher is suitable for handling various ores and large-sized materials with compressive strength below 320MPa, making it an ideal choice for ultra-large-scale crushing applications.
The HV15 Hydraulic Jaw Crusher utilizes larger-sized bearings, offering higher load-bearing capacity and extended service life. The equipment is equipped with an advanced hydraulic system that automatically adjusts the discharge opening when encountering unbreakable materials, protecting the jaw plates and preventing feed opening blockage. The HV15 Hydraulic Jaw Crusher’s design enhances the stability and reliability of the equipment and increases crushing efficiency.
