Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | HV13 |
| Feed opening | 1300 x 1600 mm |
| CSS Range | 200 - 300 mm |
| Capacity(by hour) | 620 - 1000 tph |
| Motor power | 132 - 220 kW |
*Note: The processing capacity of the HV13 jaw crusher may vary with different materials and feeding sizes.
The above pictures show the installation site of the cement production line in Saima Ningxia.
At present, the highest configuration in the industry, when the output reached 3000 tons, is the highest configuration of the production line in the industry, less power consumption, the production of sand and stone aggregate particle shape, particle size, grading, stone powder content can be adjusted and controlled, the proportion of fine stone accounted for more than 2/3.
2500 Ton/Day Gravel Aggregate Production Process Configuration List Equipment Model Unit(s) Vibrating Feeder ZG1038 1 Heavy Hammer Crusher PCZ1510 1 Hammer Crusher XPC0808 1 Vibrating Screen 2YKQ2060 2 The bulk limestone is evenly fed into

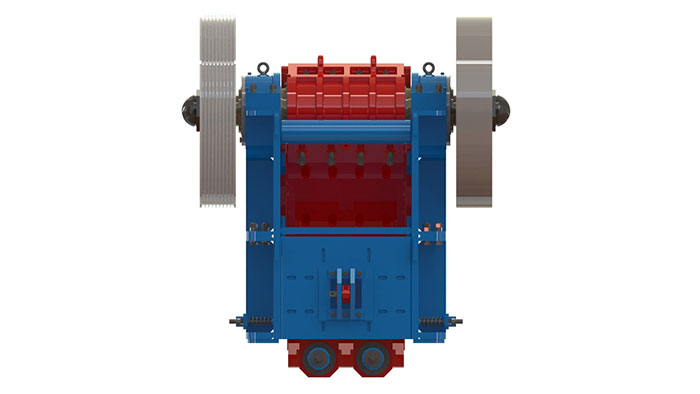

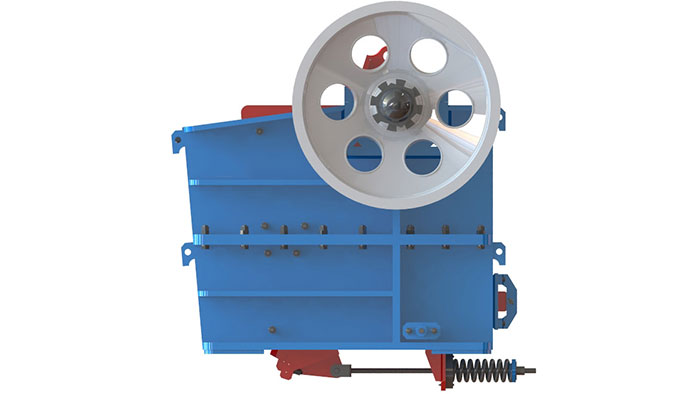

The HV13 Hydraulic Jaw Crusher is a multifunctional and high-capacity device that is critical in sand quarries, stone quarries, coal mines, cement plants, slag processing, and chemical industries. This machine has an inlet size of 1300 x 1600 mm and a minimum discharge setting of 200 mm. The HV13 Hydraulic Jaw Crusher is powered by a motor ranging from 132 - 220 kW, capable of processing between 620 and 1000 tons per hour. The HV13 Hydraulic Jaw Crusher is suitable for handling various ores and large-sized materials with compressive strength below 320MPa, making it an ideal choice for large-scale crushing applications.
The HV13 Hydraulic Jaw Crusher is equipped with an advanced discharge setting adjustment system, enabling quick adaptation to varying production needs. The equipment uses precision-engineered components and high-quality cast steel bearing housings, ensuring the stability and reliability of the equipment. The HV13 Hydraulic Jaw Crusher not only increases the application range of the equipment but also simplifies user operations.
