I.Space-saving Solution for Artificial Sand Making Plant

Raw material: limestone

Capacity: 300t/h

Equipment configured: ZGC1238 vibrating feeder, PCZ1512 heavy hammer crusher, ZSJ0808 dual rotor sand making machine, three-deck vibrating screen*3 sets

Highlights:

1.Two sets of vibrating screen are ingeniously placed up and down, which can save space while the output is guaranteed

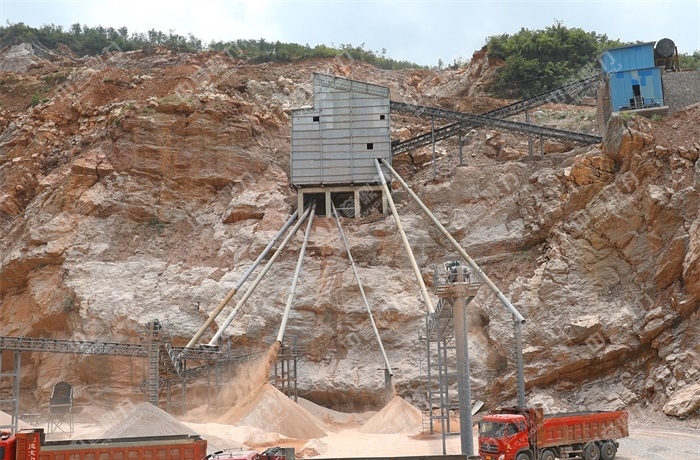

2.By advantage of height difference, pipes replace belt conveyors to make the finished product flow into the stockpile under the effect of gravity, effectively reducing the investment cost.

II.Eco-friendly Solution for Artificial Sand Making Plant

Raw material: medium-hard rocks

Capacity: 50t/h

Equipment configured: ZSJ0808 sand making machine, 3YKZ2060 vibrating screen

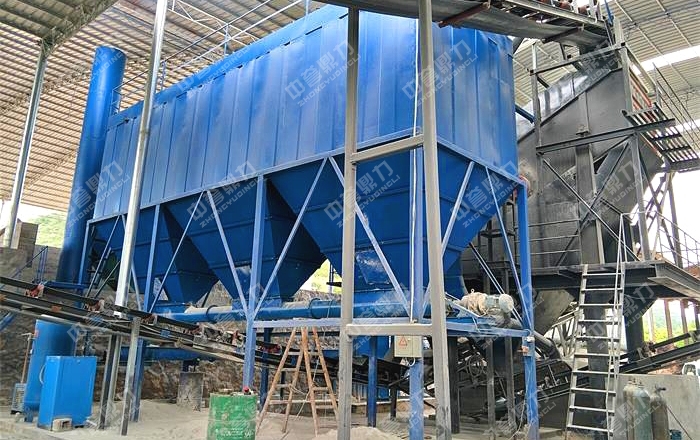

Highlights: Such plant has relatively small output, but the owner quite emphasizes environment protection. We thus help design an eco-friendly workshop where all the feeding, crushing and screening processes can be closed by the steel frame. By this way, the plant can fully meet the standard of the green sand production line.

III.Efficient Solution for Artificial Sand Making Plant

Raw material: limestone

Capacity: 350t/h

Equipment configured: 500*750 jaw crusher, ZSJ1213 dual-rotor sand making machine*2 sets, 3YKZ2470 vibrating screen*2 sets

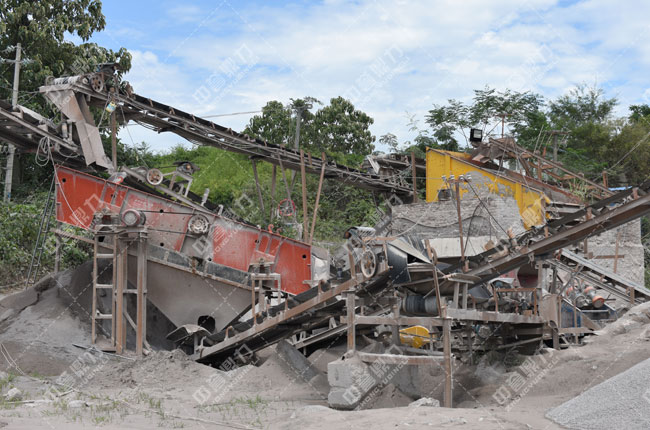

Highlights: This project is upgraded on the basis of original sand production line. The previous primary crusher kept the same, while the impact crusher, VSI sand maker and box crusher are replaced by two sets of sand making machine. Such solution ensures high efficiency and sound grain size of final products at the same time.

IV. Comprehensive Solution for Artificial Sand Making Plant

Raw material: mountain rocks

Capacity: 500t/h

Equipment configured: ZGC1550 vibrating feeder, PCZ1615 heavy hammer crusher, ZSJ1416 sand making machine, a total of 6 sets of double-deck and three-deck vibrating screen.

Highlights:

1.A set of heavy hammer crusher replaces the traditional combination of jaw crusher and impact crusher, which effectively reduces crushing process and equipment input. Besides, the actual output is 200ton more than the expected;

2.Closed production line and silos reduce the dust spill

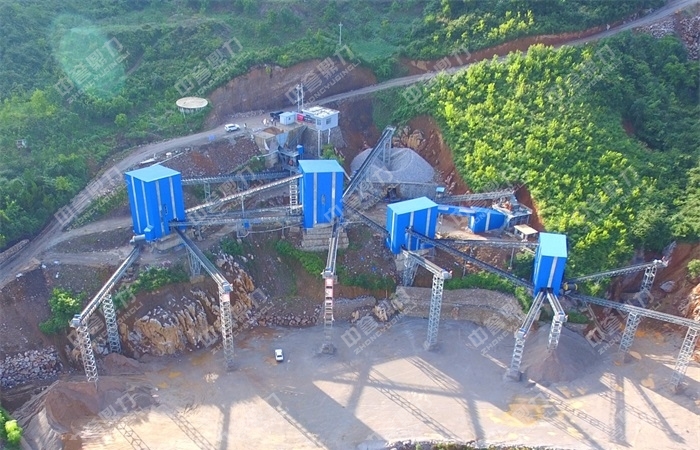

3.In addition, as shown in the pic, such solution utilizes the topography of the slope to achieve semi-automatic flow of materials.

Relative to the developed countries, China has a relatively short history since the artificial sand (M-sand) widely replaces river sand and the artificial sand making technology is slightly insufficient. However, it is gratifying that most gravel equipment manufacturers like Zhongyu Dingli begin to emphasize technology innovation, offer economical and reasonable solutions, actively try to build quality artificial sand making plants and continuously improves the after-sale service conditions and level, which will help the whole artificial sand making industry move toward a new stage every year.
